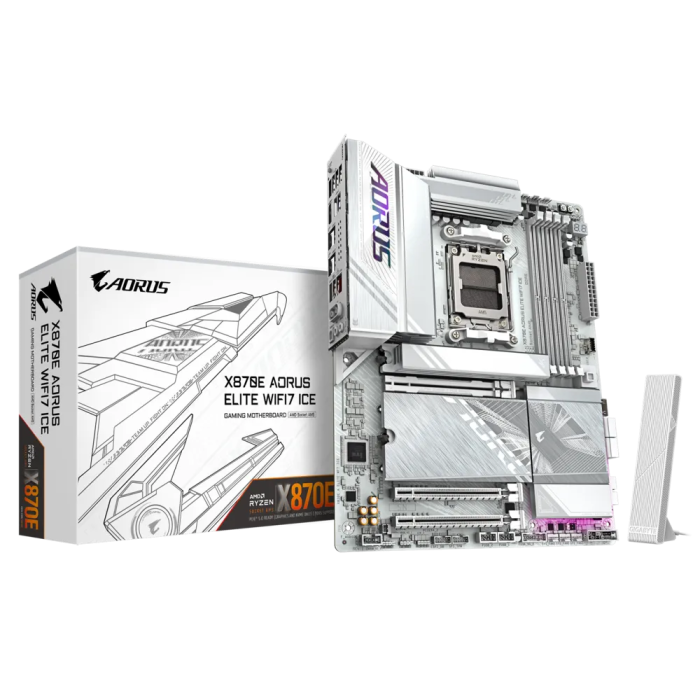

GIGABYTE X870E AORUS ELITE WIFI7 ICE, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX
GIGABYTE X870E AORUS ELITE WIFI7 ICE, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX
X870E A ELITE WF7 ICE
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD Ryzen 7000/8000/9000 Series Desktop Processors |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | AMD X870E |
| Pomnilnik | 4 x DIMM DDR5, Max. 256GB, DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz |
| Dual Channel Memory Architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 | |
| Support for AMD EXPO in Extreme Memory Profile (XMP) | |
| Grafika | preko APU, če le-ta podpira |
| RAID | DA (0,1,5,10) support for SATA / NVMe SSD |
| RAID 5 only available on AMD Ryzen 9000 | |
| RAID 0, RAID 1, RAID 10 support for SATA storage devices | |
| Razširitvene reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| AMD Ryzen 9000/7000 Series support PCIe 5.0 x16 mode | |
| 1 x PCI Express x16 slot (PCIEX4_1), PCIe 4.0 x4 | |
| 1 x PCI Express x16 slot (PCIEX4_2), PCIe 3.0 x4 | |
| Mrežna kartica | Realtek 2.5GbE LAN + Wi-Fi 7 RTL8922AE + Bluetooth 5.4 |
| Zvočna kartica | Realtek ALC1220 Surround Sound High Definition Audio CODEC |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header (USB 3.2 Gen 2×2) | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x Q-Flash Plus button |
| 4 x USB 2.0/1.1 ports | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port (Note) | |
| 2 x USB4 USB Type-C ports (DisplayPort Note) | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector |
