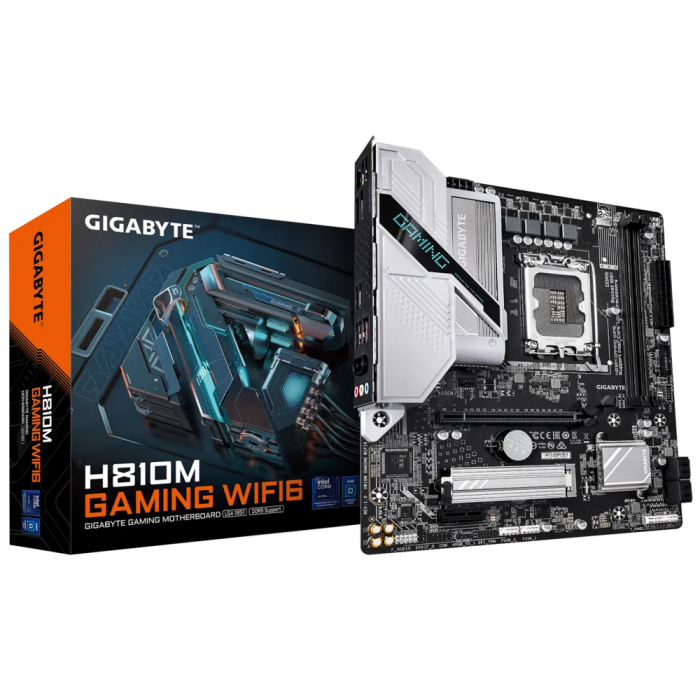

GIGABYTE H810M GAMING WIFI6, DDR5, SATA3, DP, USB3.2Gen1, Wi-Fi 6, LGA1851 mATX
GIGABYTE H810M GAMING WIFI6, DDR5, SATA3, DP, USB3.2Gen1, Wi-Fi 6, LGA1851 mATX
H810M GAMING WIFI6
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1851 |
| Za procesorje | Intel Core Ultra |
| Format | Micro ATX Form Factor 24.4cm x 21.5cm |
| Vezni čip | Intel H810 |
| Pomnilnik | 2 x DDR5 DIMM (do 6400MHz) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora |
| Grafika | DA – preko CPU |
| Raid | DA (0,1,5,10 SATA) |
| Razširitvene reže | 1 x PCI Express x16 (4.0/3.0) |
| 1 x PCI Express x1 (3.0) | |
| Mrežna kartica | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Zvočna kartica | Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x PS/2 keyboard/mouse port |
| 1 x HDMI port (Note) | |
| 1 x DisplayPort (Note) | |
| 1 x USB 3.2 Gen 1 port | |
| 5 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
