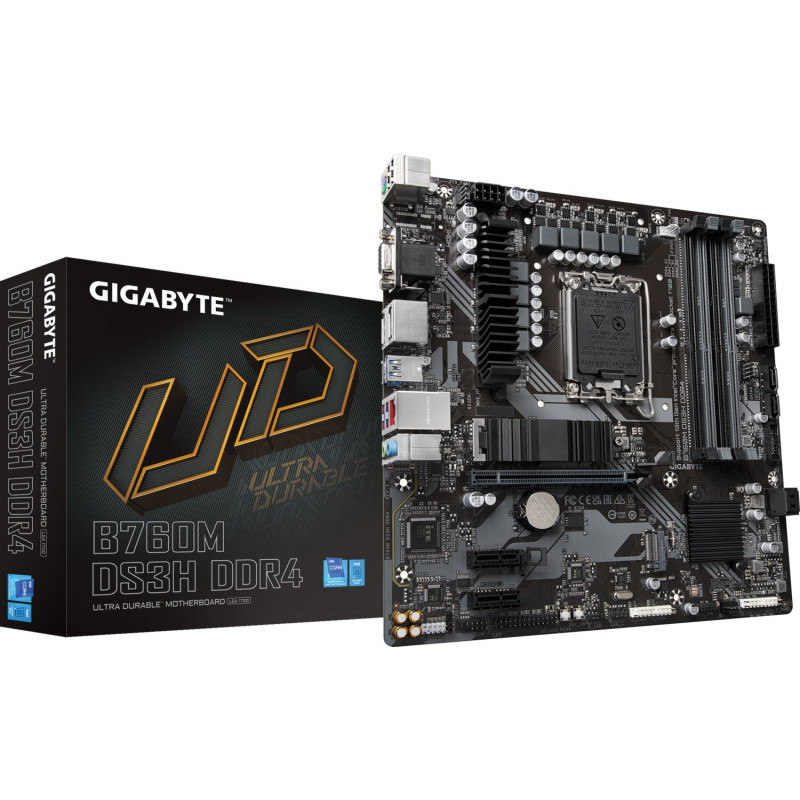

GIGABYTE B760M DS3H DDR4, DDR4, SATA3, USB3.2Gen2, DP, LGA1700 mATX
GIGABYTE B760M DS3H DDR4, DDR4, SATA3, USB3.2Gen2, DP, LGA1700 mATX
B760M DS3H DDR4
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1700 |
| Za procesorje | 13th/12th Generation Core i7/i5/i3/Pentium/Celeron |
| Format | mATX format 24.4 cm x 24.4 cm |
| Vezni čip | INTEL B760 |
| Pomnilnik | 4 x DDR4 DIMM ECC/non-ECC 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz) do skupno 128GB kapacitete, dual channel in XMP podpora |
| Grafika | DA – preko CPU |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 |
| Razširitvene reže | 1 x PCI Express 4.0/3.0 x16 |
| 2 x PCI Express 3.0 x1 | |
| Mrežna kartica | Realtek 2.5GbE LAN chip |
| Zvočna kartica | Realtek codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x HDMI port | |
| 2 x DisplayPorts | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
