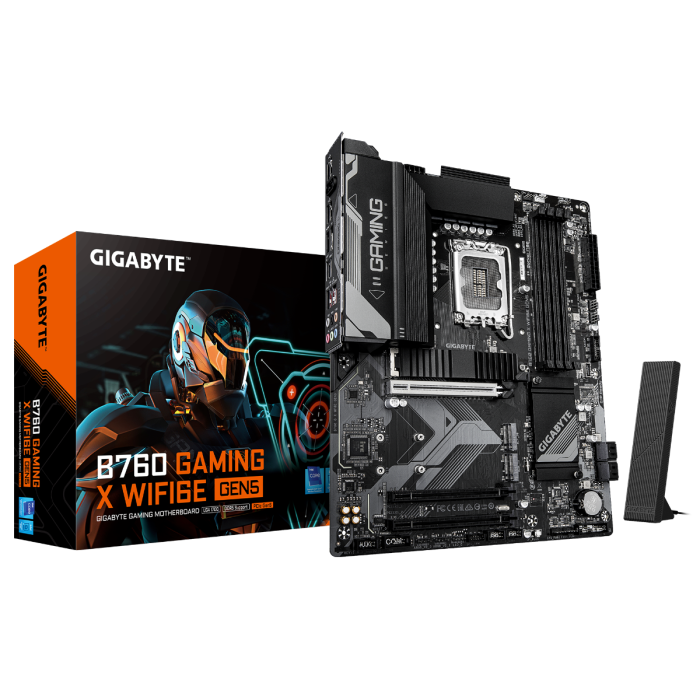

GIGABYTE B760 GAMING X WIFI6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 ATX
GIGABYTE B760 GAMING X WIFI6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 ATX
B760 G X WF6E GEN5
| Lastnost | Podatek |
|---|---|
| Podnožje | Intel LGA1700 |
| Za procesorje | Intel Core 12./13./14. generacije |
| Format | ATX format 30.5 cm × 24.4 cm |
| Vezni čip | Intel B760 Express |
| Pomnilnik | 4 x DDR5 DIMM non-ECC, podpora za frekvence 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MHz, do skupno 256 GB kapacitete, Dual channel memory architecture, podpora za non-ECC Un-buffered DIMM module, podpora za XMP profile |
| Raid | DA (0,1,5,10) |
| Razširitvene reže | 1 x PCI Express 5.0 x16 |
| 2 x PCI Express 3.0 x16 (delujeta v x1 načinu) | |
| Mrežna kartica | Realtek 2.5 GbE LAN chip |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x USB 3.2 Gen 2 Type-A port (red) |
| 1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 port | |
| 5 x USB 2.0/1.1 ports | |
| 2 x antenna connectors (2T2R) | |
| 1 x DisplayPort (Note) | |
| 1 x HDMI port (Note) | |
| 1 x RJ-45 port | |
| 6 x audio jacks |
