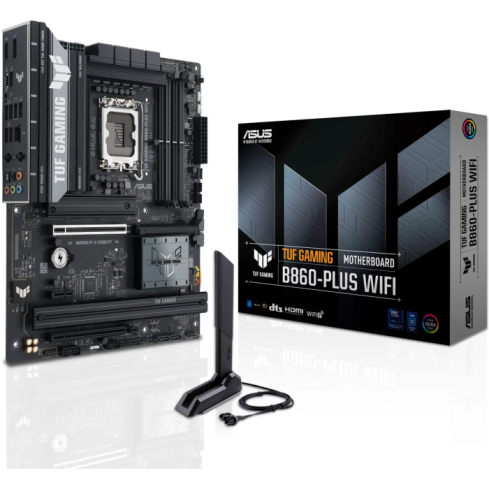

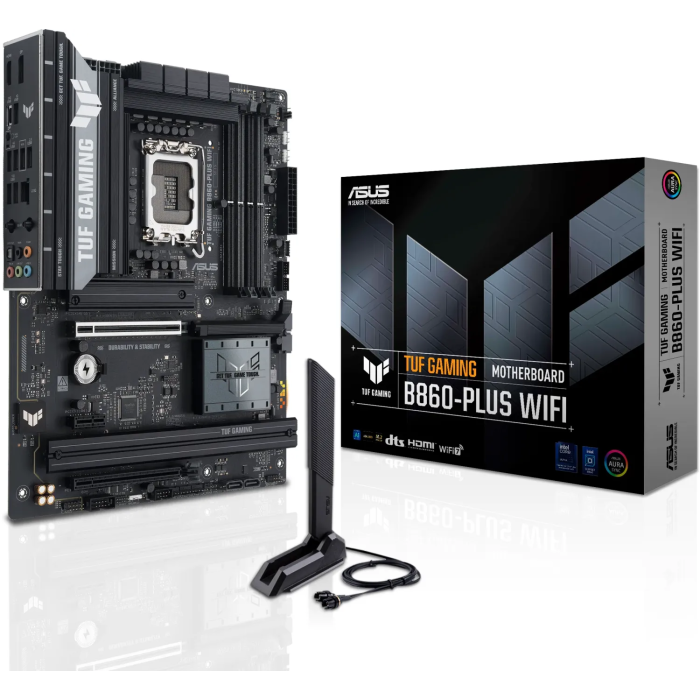

ASUS TUF GAMING B860-PLUS WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, Wi-Fi 7, LGA1851 ATX
ASUS TUF GAMING B860-PLUS WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, Wi-Fi 7, LGA1851 ATX
90MB1JL0-M0EAY0
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1851 |
| Za procesorje | Intel® Core™ Ultra Processors (Series 2) |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | INTEL B860 |
| Pomnilnik | 4 x DDR5 DIMM ECC/non-ECC do 8666+ MHz) do skupno 256GB kapacitete, dual channel in XMP podpora, ASUS Enhanced Memory Profile III(AEMPIII) |
| Grafika | DA – preko CPU |
| Raid | DA Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Razširitvene reže | Intel Core Ultra Processors(Series 2) |
| 1 x PCIe 5.0 x16 slot | |
| Intel B860 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x1 slot | |
| Mrežna kartica | Realtek 2.5Gb Ethernet z ASUS LANGuard |
| Zvočna kartica | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Notranji priključki | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connectors | |
| Storage Related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 1 x USB 2.0 header supports 2 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Zunanji priključki | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) |
| 2 x USB 10Gbps ports (2 x USB Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button |
