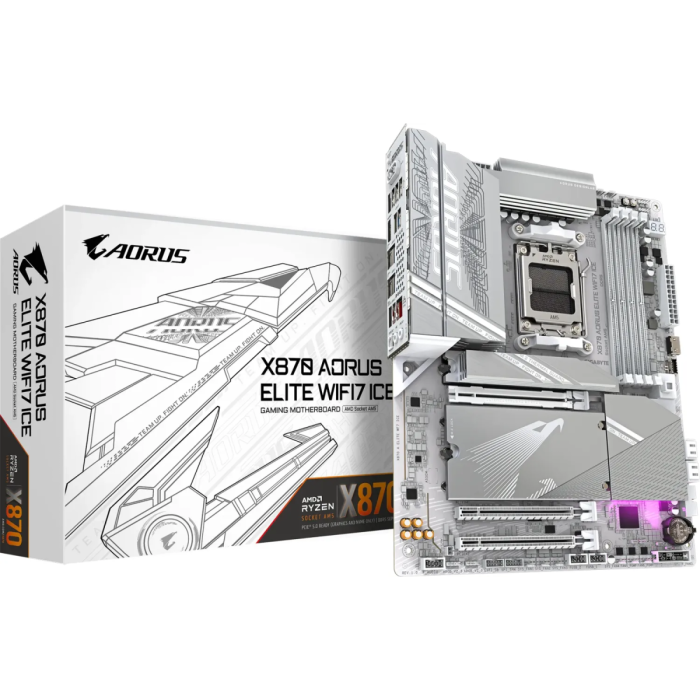

GIGABYTE X870 AORUS ELITE WIFI7 ICE, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX
GIGABYTE X870 AORUS ELITE WIFI7 ICE, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX
X870 A ELITE WF7 ICE
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD Ryzen 7000/8000/9000 Series Desktop Processors |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | AMD X870 |
| Pomnilnik | 4 x DIMM DDR5, Max. 256GB, DDR5 200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz |
| Dual Channel Memory Architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXPO in Extreme Memory Profile (XMP) memory modules | |
| Grafika | preko APU, če le-ta podpira |
| RAID | DA (0,1,10) support for SATA / NVMe SSD storage devices |
| Razširitvene reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| Mrežna kartica | Realtek 2.5GbE LAN chip + Wi-Fi 7 + BLUETOOTH 5.4 |
| MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) | |
| Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) | |
| Zvočna kartica | Realtek ALC1220 Surround Sound High Definition Audio CODEC |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header (USB 3.2 Gen 2×2) | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x Trusted Platform Module header | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 2 x temperature sensor headers | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x Q-Flash Plus button |
| 1 x HDMI port (Note) | |
| 2 x antenna connectors (2T2R) | |
| 2 x USB4 USB Type-C ports (DisplayPort (Note)) | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks |
