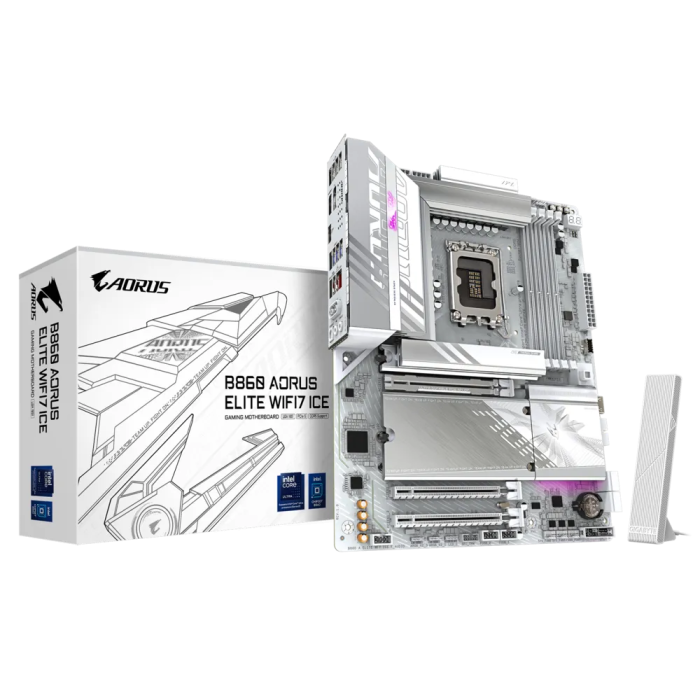

GIGABYTE B860 AORUS ELITE WF7 ICE, DDR5, SATA3, USB4, DP, Wi-Fi 7, LGA1851 ATX
GIGABYTE B860 AORUS ELITE WF7 ICE, DDR5, SATA3, USB4, DP, Wi-Fi 7, LGA1851 ATX
B860 A ELITE WF7 ICE
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1851 |
| Za procesorje | Intel Core Ultra Processors |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | INTEL B860 |
| Pomnilnik | 4 x DDR5 DIMM ECC/non-ECC 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600MHz) do skupno 256GB kapacitete, dual channel in XMP podpora, ECC/non-ECC podpora |
| Grafika | DA – preko CPU |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 SATA storage podpora |
| Razširitvene reže | 1 x PCI Express 5.0 x16 |
| 2 x PCI Express 4.0 x1 | |
| Mrežna kartica | Realtek 2.5GbE LAN chip + Wi-Fi 7 a, b, g, n, ac, ax, be + BLUETOOTH 5.4 |
| Zvočna kartica | Realtek codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x USB4 USB Type-C port (DisplayPort (Note)) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x DisplayPort (Note) | |
| 1 x HDMI port (Note) | |
| 2 x antenna connectors (2T2R) | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks |
