GIGABYTE B850 GAMING WF6, DDR5, SATA3, USB3.2Gen2, DP, WiFi, AM5 ATX
GIGABYTE B850 GAMING WF6, DDR5, SATA3, USB3.2Gen2, DP, WiFi, AM5 ATX

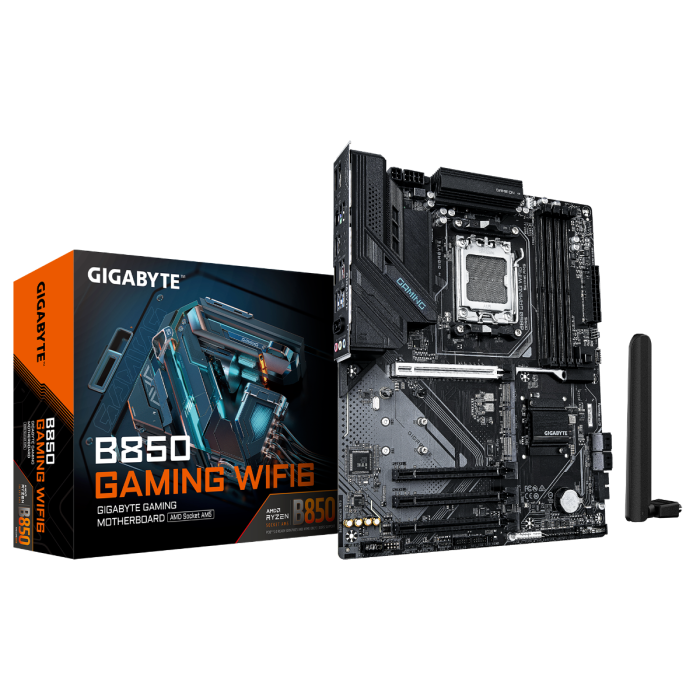

B850 GAMING WF6
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD Ryzen serije 7000 / 8000 / 9000 |
| Format | ATX format 30,5 cm × 24,4 cm |
| Vezni čip | AMD B850 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC, podpora za frekvence do 8200 MHz (OC) in do skupne kapacitete 256 GB, Dual channel arhitektura, podpora za un-buffered DIMM module |
| Raid | DA (0,1,5,10) |
| Razširitvene reže | 1 x PCI Express 5.0 x16 |
| 3 x PCI Express 3.0 x1 | |
| Mrežna kartica | GbE LAN (1 Gb/s) |
| Zvočna kartica | Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x DisplayPort (Note) |
| 1 x HDMI port (Note) | |
| 1 x Q-Flash Plus button | |
| 4 x USB 2.0/1.1 ports | |
| 1 x PS/2 keyboard/mouse port | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 1 ports | |
| 2 x antenna connectors (2T2R) | |
| 3 x audio jacks |
