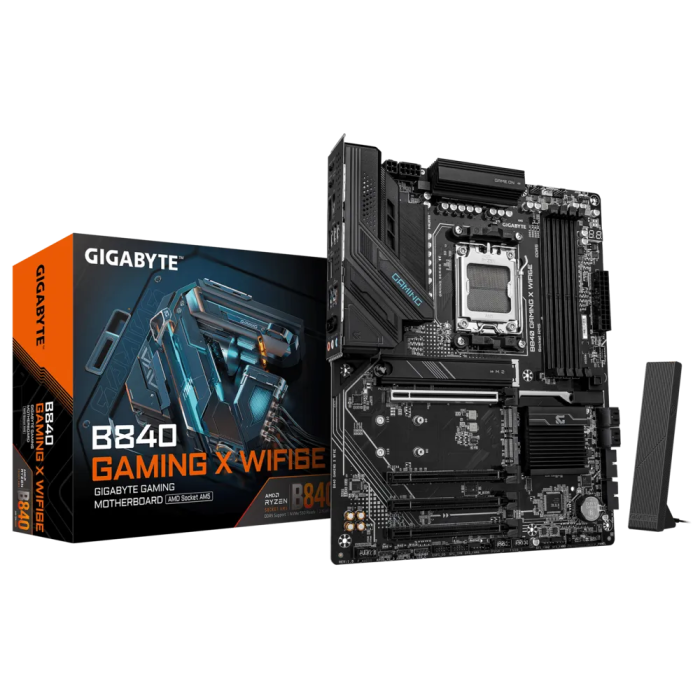

GIGABYTE B840 GAMING X WIFI6E, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, Wi-Fi 6E, AM5 ATX
GIGABYTE B840 GAMING X WIFI6E, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, Wi-Fi 6E, AM5 ATX
B840 GAMING X WF6E
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD RYZEN 7000/8000/9000 Series |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | AMD B840 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC 7600(OC) / 7200(OC )/ 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800MHz |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) support for SATA/NVME storage devices, RAID 5 samo z AMD Ryzen 9000 serijo |
| Razširitvene reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Mrežna kartica | Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x power button |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x Clear CMOS button | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 3 x audio jacks |
