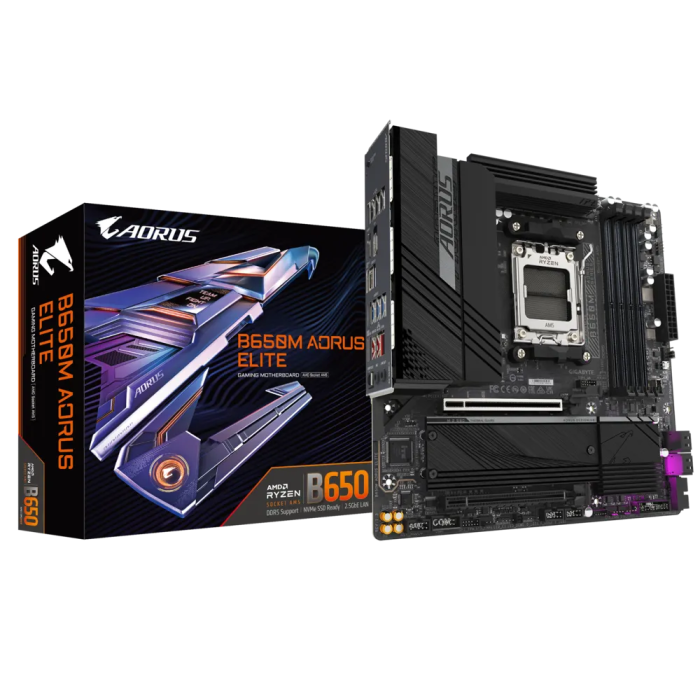

GIGABYTE B650M AORUS ELITE, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, AM5 mATX
GIGABYTE B650M AORUS ELITE, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, AM5 mATX
B650M AORUS ELITE
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD RYZEN 7000 / 8000 / 9000 Series https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-rev-13/support#support-cpu |
| Format | micro ATX format 24.4 cm x 24.4 cm |
| Vezni čip | AMD B650 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400MHz |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) za SATA NVMe SSD storage |
| Razširitvene reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Mrežna kartica | Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2×2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x serial port header | |
| 1 x THB_U4 add-in card connector | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x Q-Flash Plus button |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 5 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks |
