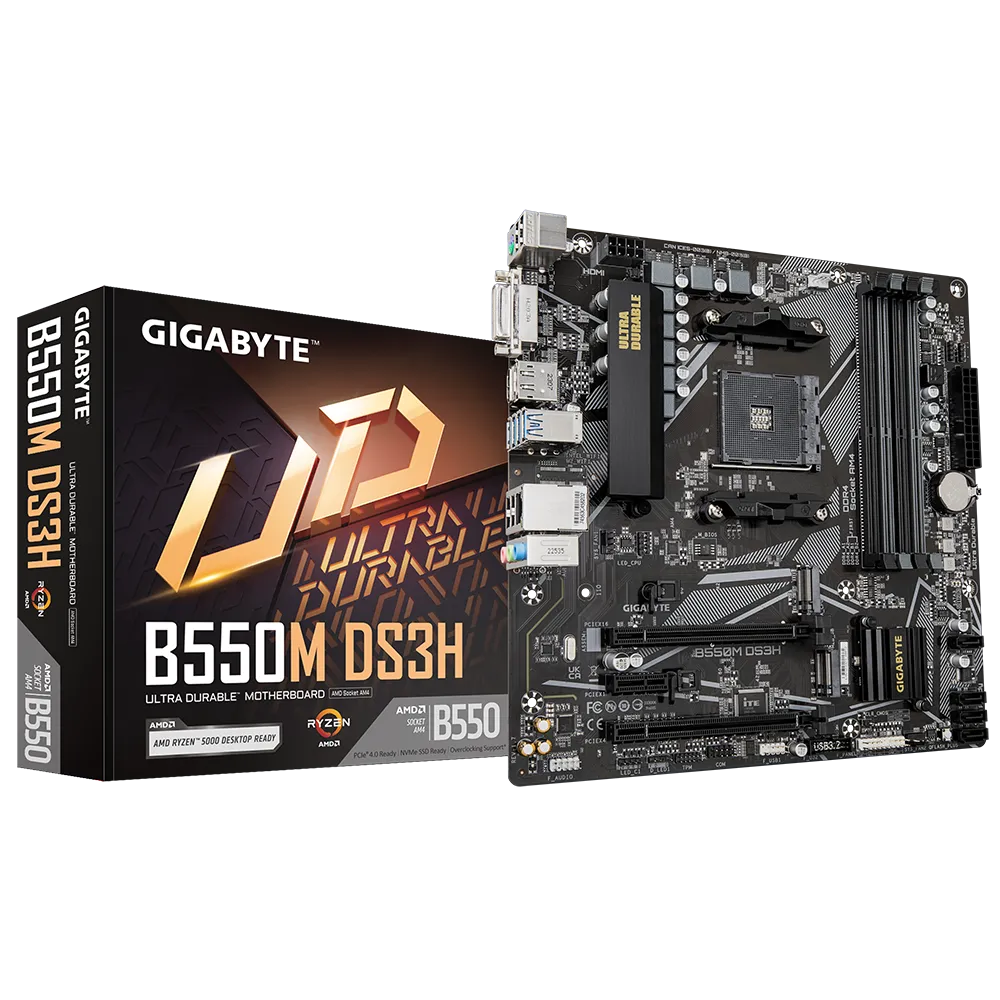

GIGABYTE B550M DS3H, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX
GIGABYTE B550M DS3H, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX
B550M DS3H 1.7
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM4 |
| Za procesorje | AMD RYZEN |
| Format | mATX format 24.4 cm x 24.4 cm |
| Vezni čip | AMD B550 |
| Pomnilnik | 4 x DDR4 DIMM ECC/non-ECC do 4733 MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) |
| Razširitvene reže | 1 x PCI Express 3.0/4.0 x16 |
| 1 x PCI Express 3.0 x4 | |
| 1 x PCI Express 3.0 x1 | |
| Mrežna kartica | Realtek LAN chip (10/100/1000Mbit) |
| Zvočna kartica | Realtek ALC887 codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| 1 x Q-Flash Plus button | |
| Zunanji priključki | 1 x PS/2 keyboard/mouse port |
| 1 x DVI-D port | |
| 1 x HDMI port | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
