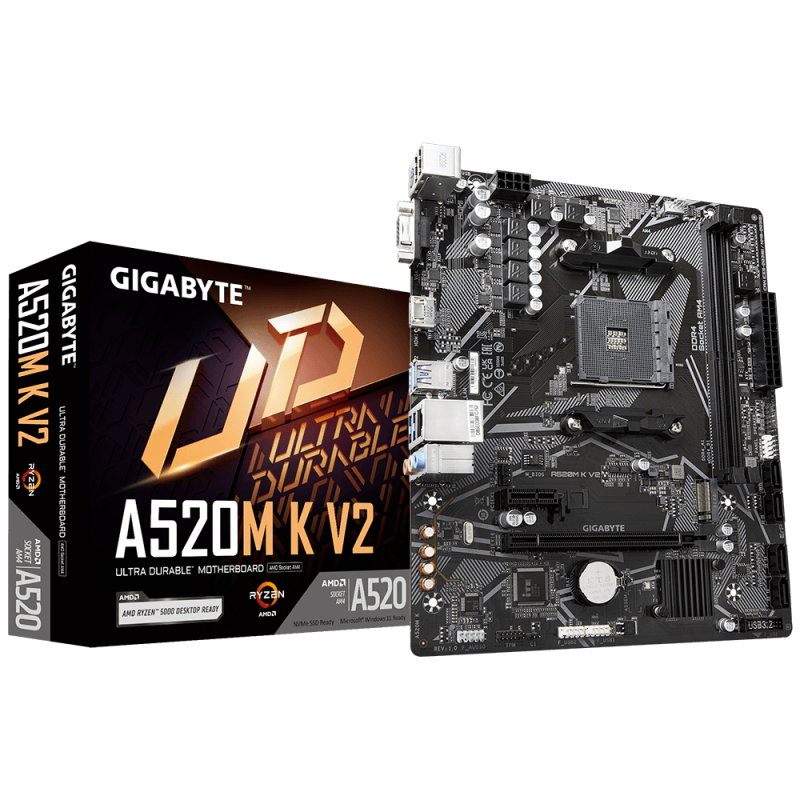

GIGABYTE A520M K V2, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX
GIGABYTE A520M K V2, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX
A520M K V2
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM4 |
| Za procesorje | AMD RYZEN |
| Format | mATX format 23.3 cm x 19.8 cm |
| Vezni čip | AMD A520 |
| Pomnilnik | 2 x DDR4 DIMM (5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz) do skupno 64GB kapacitete, dual channel podpora, support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, support for Extreme Memory Profile (XMP) memory modules |
| Grafika | DA, peko APU |
| Raid | DA (0,1,10) |
| Razširitvene reže | 1 x PCI Express x16 |
| 1 x PCI Express x1 | |
| Mrežna kartica | Realtek LAN chip (10/100/1000Mbit) |
| Zvočna kartica | Realtek codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1 x speaker header | |
| 1 x Clear CMOS jumper | |
| 1 x chassis intrusion header | |
| Zunanji priključki | 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port | |
| 1 x HDMI port | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
