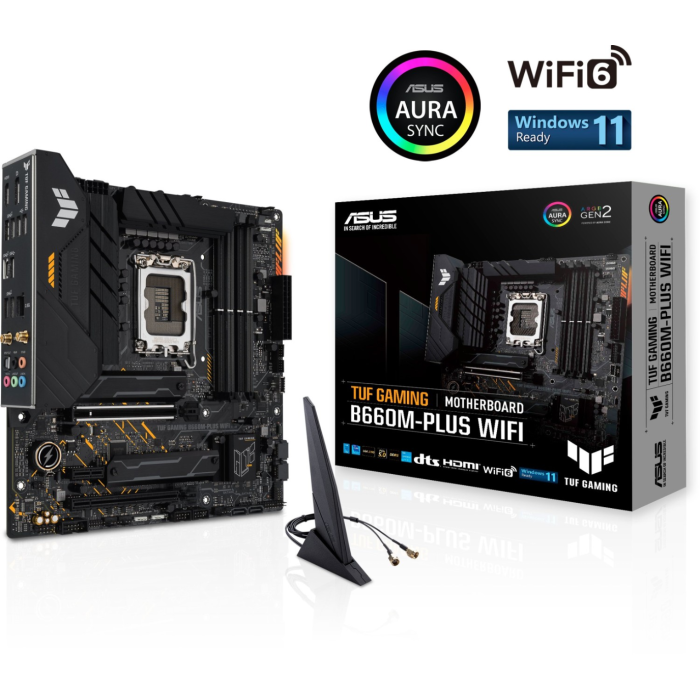

ASUS TUF GAMING B660M-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, WiFi, LGA1700 mATX
ASUS TUF GAMING B660M-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, WiFi, LGA1700 mATX
90MB1AZ0-M1EAY0
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1700 |
| Za procesorje | 12th Gen Intel Core, Pentium Gold and Celeron Processor |
| Format | ATX format 24.4 cm x 24.4 cm |
| Vezni čip | INTEL B660 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC do 6000 MHz) do skupno 192GB kapacitete, dual channel in XMP podpora, OptiMem II |
| Grafika | DA – preko CPU |
| Raid | DA Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Razširitvene reže | Intel 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel B660 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x1 slot | |
| Mrežna kartica | Realtek 2.5Gb Ethernet z ASUS LANGuard ; 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2.4/5GHz + Bluetooth v5.2 |
| Zvočna kartica | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Notranji priključki | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt header | |
| Zunanji priključki | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
| 4 x USB 3.2 Gen 2 ports (4 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port |
