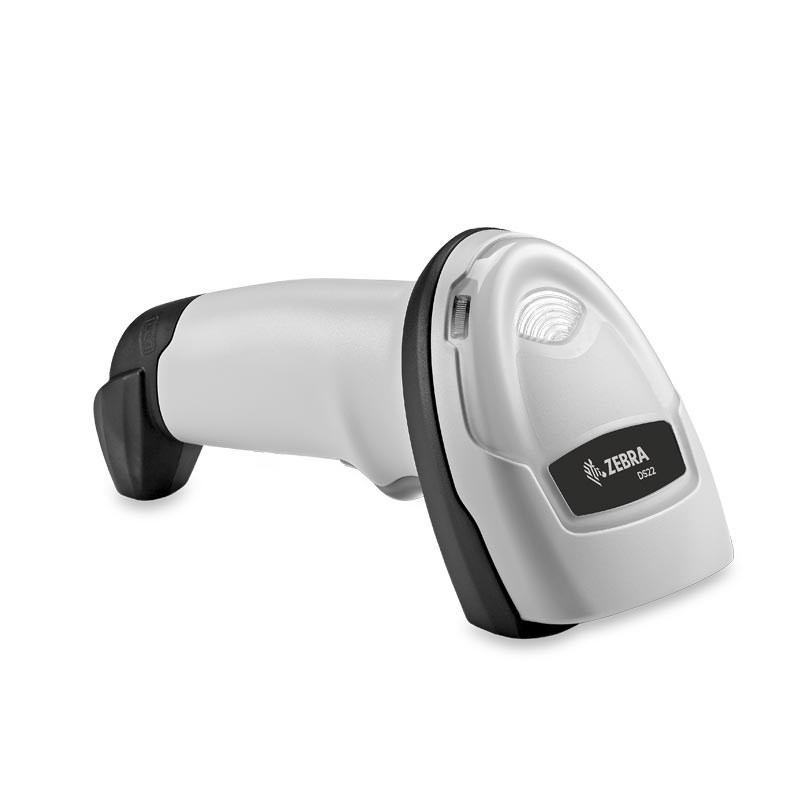

Zebra DS2208, 2D, multi-IF, kit (USB), white
Zebra DS2208, 2D, multi-IF, kit (USB), white
handheld scanner, retail, 2D, imager, multi-interface (RS232, KBW, USB), protection class: IP42, incl.: cable (USB), stand (colour: black), colour: white
Za druge modele čitalcev nam pišite na info@krajnik.si
Physical Characteristics
Dimensions Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.6 cm W x 9.9 cm D
Cordless DS2278:
6.9 in. H x 2.6 in. W x 3.5 in. D
17.5 cm H x 6.6 cm W x 9.0 cm D
Presentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.2 cm H x 9.4 cm W x 12.2 cm D
Weight Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: 7.5 oz. / 214 g
Presentation Cradle: 5.2 oz. / 151 g
Input Voltage
Range
DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC
Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Corded DS2208 Operating Current at
Nominal Voltage (5.0V): 250 mA (typical).
(Note: Auto-Aim and Illumination on Acquiring
Image)
Corded DS2208 Standby Current (idle) at
Nominal Voltage (5.0V): 150 mA (typical).
(Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable:
500 mA (typical) Standard USB; 1100 mA
(typical) BC 1.2 USB
Color Nova White, Twilight Black
Supported Host
Interfaces
USB, RS232, Keyboard Wedge, TGCS (IBM)
46XX over RS485
Keyboard Support Supports more than 90 international keyboards
User Indicators Direct Decode Indicator; good decode LEDs;
Rear view LEDs; beeper (adjustable tone and
volume)
