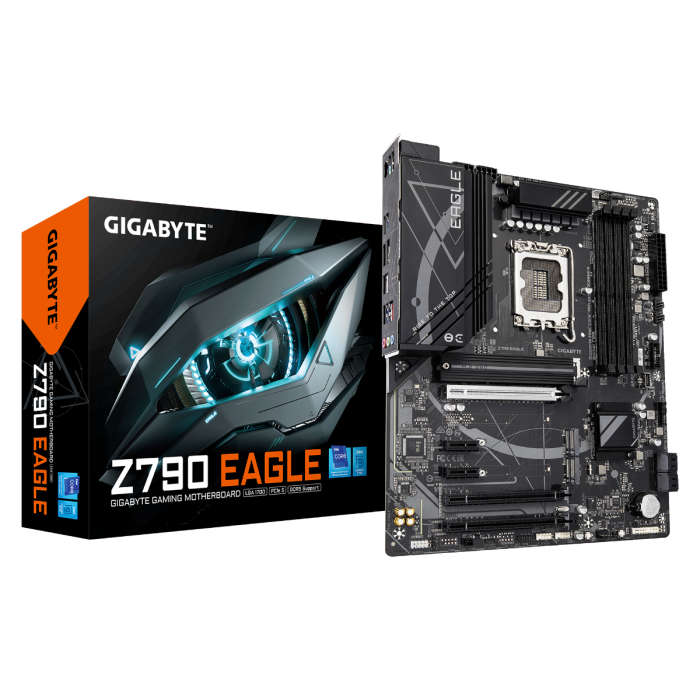

GIGABYTE Z790 EAGLE, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, LGA1700 ATX
GIGABYTE Z790 EAGLE, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, LGA1700 ATX
Z790 EAGLE
| Lastnost | Podatek |
|---|---|
| Podnožje | Intel LGA1700 |
| Za procesorje | Intel Core 12./13./14. generacije Series |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | Intel Z790 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC, podpora za frekvence do 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5600 / 5200 / 4800MHz, do skupno 256 GB kapacitete, Dual channel memory architecture, podpora za non-ECC Un-buffered DIMM modulov, podpora za AMD EXtended Profiles za Overclocking (AMD EXPO™) ali XMP (ker gre za Intel platformo XMP) |
| Raid | DA (0,1,5,10) |
| Razširitvene reže | 1 x PCI Express 5.0 x16 |
| 1 x PCI Express 4.0 x16 (x4 režim) | |
| 1 x PCI Express 3.0 x1 | |
| Mrežna kartica | Realtek 2.5 GbE LAN chip |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 3.2 Gen 1 Type-C header – MANJKA če je posamezno ali več | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2) – MANJKA če je podrobnejše | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 1 x PS/2 tipkovnica/miška port |
| 1 x USB Type-C® port, z USB 3.2 Gen 2 podporo | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
