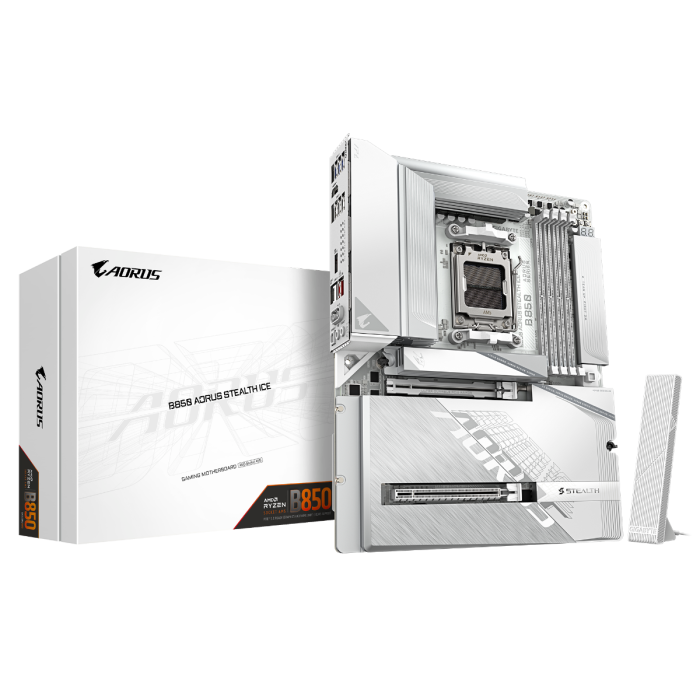

GIGABYTE B850 A STEALTH ICE, DDR5, SATA3, USB3.2Gen2x2, DP, 5GbE, WiFi, AM5 ATX
GIGABYTE B850 A STEALTH ICE, DDR5, SATA3, USB3.2Gen2x2, DP, 5GbE, WiFi, AM5 ATX
B850 A STEALTH ICE
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za Procesorje | AMD Ryzen 7000/8000/9000 Series |
| Format | ATX format 30.5 cm × 24.4 cm |
| Vezni Čip | AMD B850 |
| Pomnilnik | 4 x DDR5 DIMM non-ECC 8200/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400MHz (odvisno od procesorja) do skupno 256 GB kapacitete |
| dual channel in EXtended Profiles for Overclocking | |
| Extreme Memory Profile (XMP) podpora | |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) support for SATA/NVMe storage devices |
| Razširitvene Reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Mrežna Kartica | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Realtek® Wi-Fi 7 RTL8922AE, a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz | |
| Bluetooth 5.4 | |
| Zvočna Kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji Priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 2 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x Q-Flash Plus button | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 2 x temperature sensor headers | |
| 1 x Clear CMOS jumper | |
| Zunanji Priključki | 1 x HDMI port (Note) |
| 2 x antenna connectors (2T2R) | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks |
