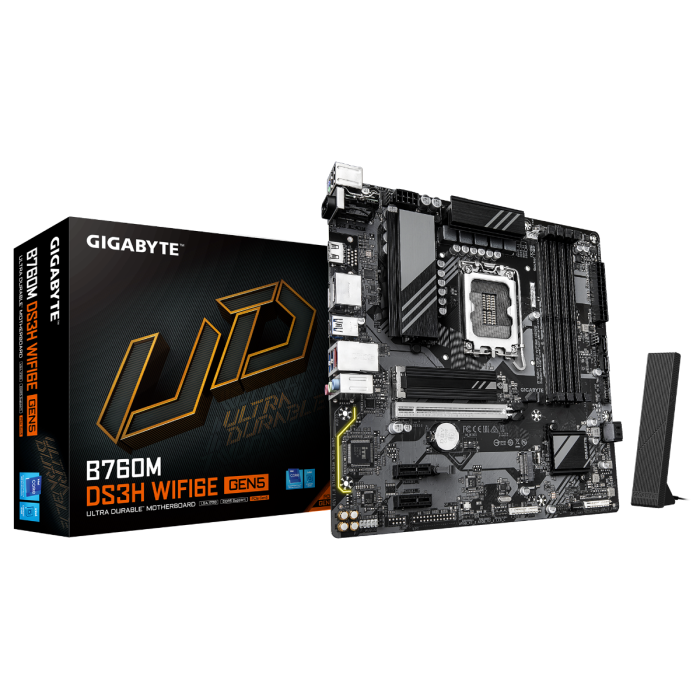

GIGABYTE B760M DS3H WF6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 mATX
GIGABYTE B760M DS3H WF6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 mATX
B760M DS3H WF6E GEN5
| Lastnost | Podatek |
|---|---|
| Podnožje | Intel LGA1700 |
| Za procesorje | Intel Core 12./13./14. generacije |
| Format | mATX format 24,4cm x 24,4cm |
| Vezni čip | Intel B760 Express |
| Pomnilnik | 4 x DDR5 DIMM, podpora za do 192 GB kapacitete, Dual Channel architecture, podprti profili XMP; frekvence 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 MHz |
| Raid | DA (0,1,5,10) – SATA RAID |
| Razširitvene reže | 1 x PCI Express 5.0 x16 |
| 1 x PCI Express 3.0 x16 (deluje v x4 načinu) | |
| 1 x PCI Express 3.0 x1 | |
| Mrežna kartica | 2.5 GbE LAN |
| Zvočna kartica | Realtek Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 3.2 Gen 1 Type-C header | |
| 2 x USB 2.0 headers | |
| 1 x Trusted Platform Module header | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 2 x USB 2.0/1.1 ports |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| 1 x Q-Flash Plus button | |
| 1 x Wi-Fi 6E antena priključek (dual-band) |
