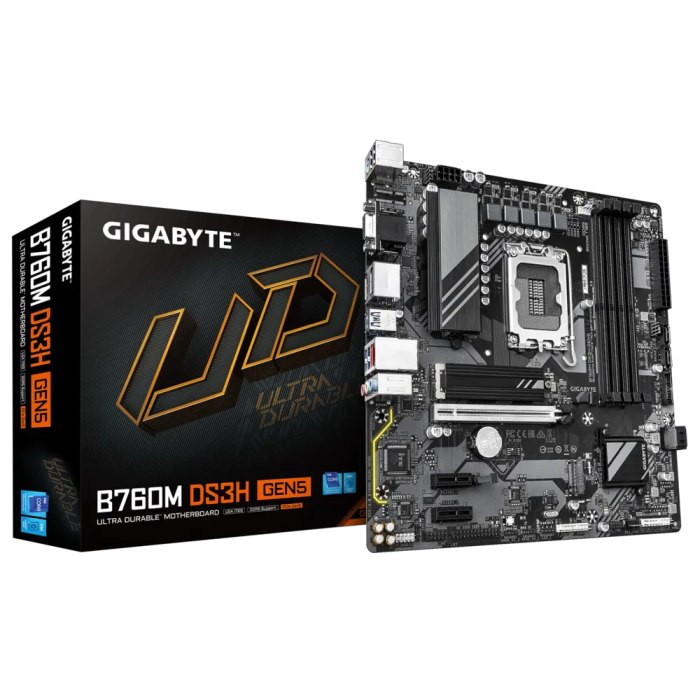

GIGABYTE B760M DS3H GEN5, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX
GIGABYTE B760M DS3H GEN5, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX
B760M DS3H GEN5
| Lastnost | Podatek |
|---|---|
| Podnožje | INTEL LGA 1700 |
| Za procesorje | 14/13/12 Generation Core i7/i5/i3/Pentium/Celeron |
| Format | micro ATX format 24.4 cm x 24.4 cm |
| Vezni čip | INTEL B760 |
| Pomnilnik | 4 x DDR5 DIMM ECC/non-ECC 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400MHz) do skupno 256GB kapacitete, dual channel in XMP podpora |
| Grafika | DA – preko CPU |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 podpora SATA storage |
| Razširitvene reže | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 | |
| The PCIEX16 slot can only support a graphics card or an NVMe SSD | |
| Chipset: | |
| – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Mrežna kartica | Realtek 2.5GbE LAN chip |
| Zvočna kartica | Realtek codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x parallel port header | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x D-Sub port (Note) | |
| 1 x HDMI port (Note) | |
| 2 x DisplayPorts (Note) | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
