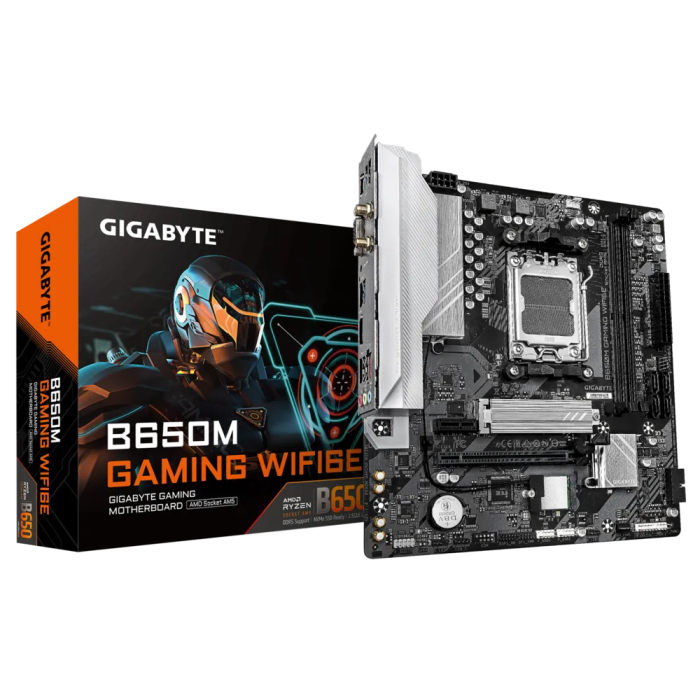

GIGABYTE B650M GAMING WIFI6E, DDR5, SATA3, USB3.2Gen1, HDMI, 2.5GbE, Wi-Fi 6E, AM5 mATX
GIGABYTE B650M GAMING WIFI6E, DDR5, SATA3, USB3.2Gen1, HDMI, 2.5GbE, Wi-Fi 6E, AM5 mATX
B650M GAMING WIFI6E
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD RYZEN 7000/8000 Series |
| Format | micro ATX format 24 cm x 22.5 cm |
| Vezni čip | AMD B650 |
| Pomnilnik | 2 x DDR5 DIMM non-ECC 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) podpora |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) support for SATA/NVME storage devices |
| Razširitvene reže | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode | |
| AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Chipset: | |
| – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Mrežna kartica | Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) + Wi-Fi 6E RTL8852CE a, b, g, n, ac, ax, supporting 2.4/5/6 GHz + BLUETOOTH 5.3 |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 2 x addressable LED strip headers | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x Clear CMOS jumper | |
| Zunanji priključki | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 1 x D-Sub port | |
| 1 x Q-Flash Plus button | |
| 2 x USB 3.2 Gen 1 ports | |
| 1 x HDMI port | |
| 1 x RJ-45 port | |
| 3 x audio jacks |
