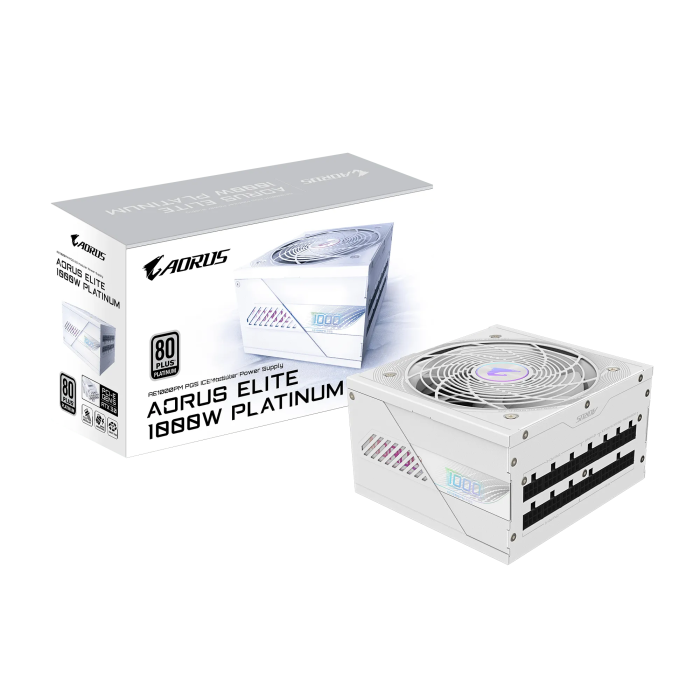

Gigabyte AORUS Elite P1000W PLATINUM ICE modularni napajalnik
Gigabyte AORUS Elite P1000W PLATINUM ICE modularni napajalnik
GP-AE1000PM PG5 ICE
AORUS Elite P1000W PLATINUM ICE modularni napajalnik – Moč: 1000W, Ventilator: 120mm FDB, Priključki: ATX/MB 20+4 Pin x 1, CPU/EPS 4+4 Pin x 2, PCI-e 16 Pin x 1, PCI-e 6+2 Pin x 6, SATA x 8, 24 Pin Peripheral x 4. Dimenzije: 150×140×86 mm. Primeren za ATX 12V v3.0.
| Lastnost | Podatek |
|---|---|
| Moč | 1000W |
| Ventilator | 120mm Fluid Dynamic Bearing (FDB) |
| Priključki | ATX/MB 20+4 Pin x 1 : 650mm*1 |
| CPU/EPS 4+4 Pin x 2 : 700mm*2 | |
| PCI-e 16 Pin x 1 : 700mm*1 | |
| PCI-e 6+2 Pin x 6 : 650mm+150mm2, 750mm2 | |
| SATA x 8 : 600mm+150mm+150mm+150mm*2 | |
| 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 | |
| Teža | |
| Dimenzije | 150×140×86 mm |
| Primernost | Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| Dodatno | Active PFC (>0.9 typical) |
| MTBF >100,000 hours | |
| OVP / OPP / SCP / UVP / OCP / OTP | |
| 100–150ms power signal | |
| >16ms Hold Up Time | |
| Flat kabli |
