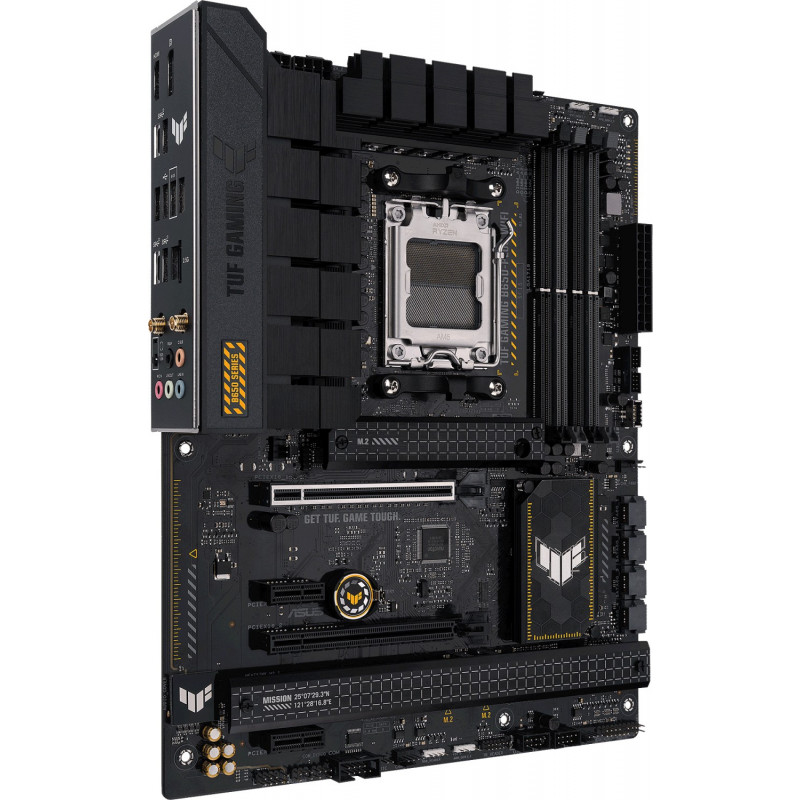

ASUS TUF GAMING B650-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi, AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi, AM5 ATX
90MB1BZ0-M0EAY0
| Lastnost | Podatek |
|---|---|
| Podnožje | AMD AM5 |
| Za procesorje | AMD RYZEN 7000 Series |
| Format | ATX format 30.5 cm x 24.4 cm |
| Vezni čip | AMD B650 |
| Pomnilnik | 4 x DDR5 DIMM ECC and Non-ECC, Un-buffered Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora |
| Grafika | DA – preko APU |
| Raid | DA (0,1,10) |
| Razširitvene reže | 1 x PCI Express 3.0/4.0 x16 |
| 1 x PCI Express 3.0/4.0 x4 | |
| 2 x PCI Express 3.0/4.0 x1 | |
| Mrežna kartica | Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) TUF LANGuard + Wi-Fi 6 2.4/5GHz 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2 |
| Zvočna kartica | Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel) |
| Notranji priključki | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin CPU OPT Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 4 x 4-pin Chassis Fan header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 header(s) | |
| 1 x Aura RGB header(s) | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ (USB4®) header | |
| Zunanji priključki | 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) |
| 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 2.0 port(s) (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack™ button |
